Coils for Wind Generators & Wind Turbines
Anstee Coil Designs And Manufactures Custom Stator And Rotor Coils For Integration Into Wind Turbine Generators
Anstee Coil Technology designs and manufactures replacement and OEM stator coils for Doubly-Fed Induction Generators (DFIG) and Permanent Magnet Generators (PMG). We specialise exclusively in high-reliability electromagnetic coil components for OEM generator production and repair—we do not manufacture complete wind turbine assemblies.
Supplying customers globally across the renewable energy sector, our wind turbine coils support applications ranging from small domestic generators up to large-scale turbines of 1 MW capacity. Engineered to mitigate thermal breakdown during continuous grid excitation, our coils ensure maximum generator uptime and reliable power output in demanding onshore and offshore environments.
Technical Specifications
| Specification Parameter | Standard Capability & Range |
|---|---|
| Component Type | Excitation Coils, Magnetic Field Coils, Saddle Coils, Bobbin Windings |
| Excitation Modes | Low-Frequency Pulsed DC, Dual-Frequency, AC Excitation Systems |
| Insulation Class | Class F (155°C), Class H (180°C), Class C (200°C+) custom profiles |
| Wire Profiles & Materials | High-grade oxygen-free copper, fine-gauge enamelled wire, self-bonding wire |
| Coil Geometry | Saddle-shaped, rectangular with rounded corners, toroidal, flat-wound profiles |
| Encapsulation & Impregnation | Vacuum Pressure Impregnation (VPI), epoxy resin potting, overmoulding |
| Quality Inspection | 100% Inductance & Resistance Verification, Surge Testing, ISO 9001:2015 |
Coils for Wind Power Generation Applications
Wind power systems operate in demanding environments and require components that deliver consistent performance over long service lives. Our bespoke and off-the-shelf coils for wind turbines are engineered to meet these challenges.
You’ll find Anstee coils in wind-power equipment with output capacities ranging from below 100 W to over 1 MW, operating in a wide variety of climatic and mechanical conditions worldwide.
OEM Excitation Coil Capabilities & Technical Benefits
Bespoke and off-the-shelf electromagnetic coils for wind generators and wind turbines
Suitable for wind power systems generating from 100 W to over 1 MW
Short lead times (typically 2 working days for standard products)
Bespoke coil designs tailored to specific performance requirements
Off-the-shelf options covering common wind-power applications
Layered windings for optimum electromagnetic performance
Self-bonding magnet wire for improved mechanical strength and long-term reliability
Freestanding air-core coils
Designed for high-temperature operation (up to 220 °C)
Resin-filled coil assemblies offering:
Reduced weight
Lower overall cost
Elimination of potential leak paths
Enhanced protection of windings
Increased temperature capability
100% quality inspection on all manufactured coils
Tailored protective packaging to ensure safe delivery and immediate usability
-
Designed for Reliability in Renewable Energy Systems
Wind turbines operate continuously under mechanical stress and environmental exposure. For this reason, our coil manufacturing processes focus on repeatability, durability, and performance stability.
Our self-bonding magnet-wire process ensures each turn of the coil adheres securely to the next, delivering improved vibration resistance and extended operational life.
-
Global Manufacturing & Supply
Anstee Coil Technology supplies coils for wind power generation globally, supporting customers across Europe, Asia, North America, and other international markets. Our manufacturing capabilities and quality standards remain consistent regardless of destination.
Anstee Coil Technology supplies globally from its dedicated manufacturing facilities in the UK, China, and Mexico.
Request a Quote for Wind Generator & Wind Turbine Coils
If you require coils for wind generators or wind turbine applications, whether for prototype development, system validation, or full production supply, our engineering team is ready to support your project.
Contact us to discuss your requirements or request a quote.
Frequently Asked Questions
-
Yes. We manufacture drop-in replacement stator and rotor coils built to precise original manufacturer dimensions for rewinders, service contractors, and turbine refurbishment facilities across the UK and internationally.
-
We build coils using Class H (180°C) and Class C (200°C+) insulation systems designed to withstand continuous high thermal loads, rapid cycle changes, and harsh offshore or onshore environmental conditions.
-
We work directly from OEM engineering drawings, CAD files, or reverse-engineer physical coil samples provided from damaged, legacy, or obsolete generator units.
-
Lead times depend on material requirements and batch size, but we offer fast turnaround options for emergency repair work as well as scheduled production runs for ongoing OEM assembly lines.
-

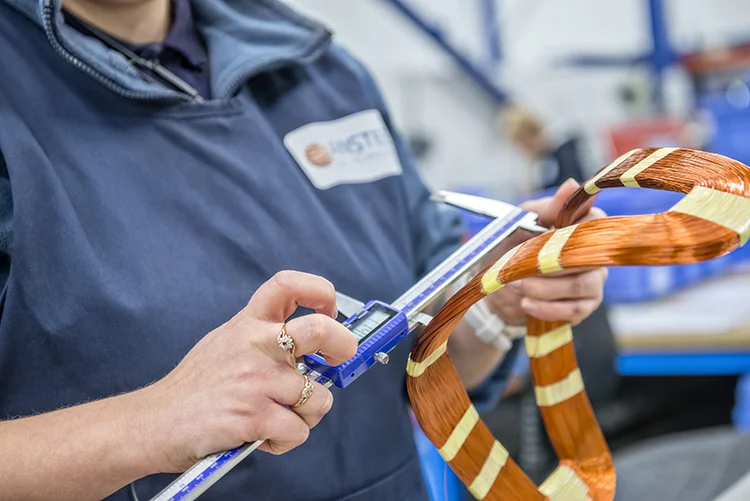

Every coil undergoes rigorous quality control at our facility, including 100% surge testing, resistance checking, and high-potential (Hi-Pot) electrical testing to ensure full compliance with ISO 9001:2015 standards.
-
Yes. We process a wide range of oxygen-free copper conductors, including custom rectangular, square, and shaped magnet wire profiles tailored to optimise slot fill in generator stators.
